Bandeshah Medical Complex
The Bandeshah Medical Complex is a state-of-the-art healthcare facility designed to provide modern diagnostic and outpatient care in a professional, efficient, and patient-friendly environment. With a carefully designed 2D floor plan and a visually strong 3D exterior, the project offers the foundation for high-impact medical service delivery with room for future vertical or lateral expansion.
Located in a high-access zone, the building is designed to serve both urban and semi-urban populations, with a focus on OPD services, diagnostics, minor emergency, and daycare procedures.

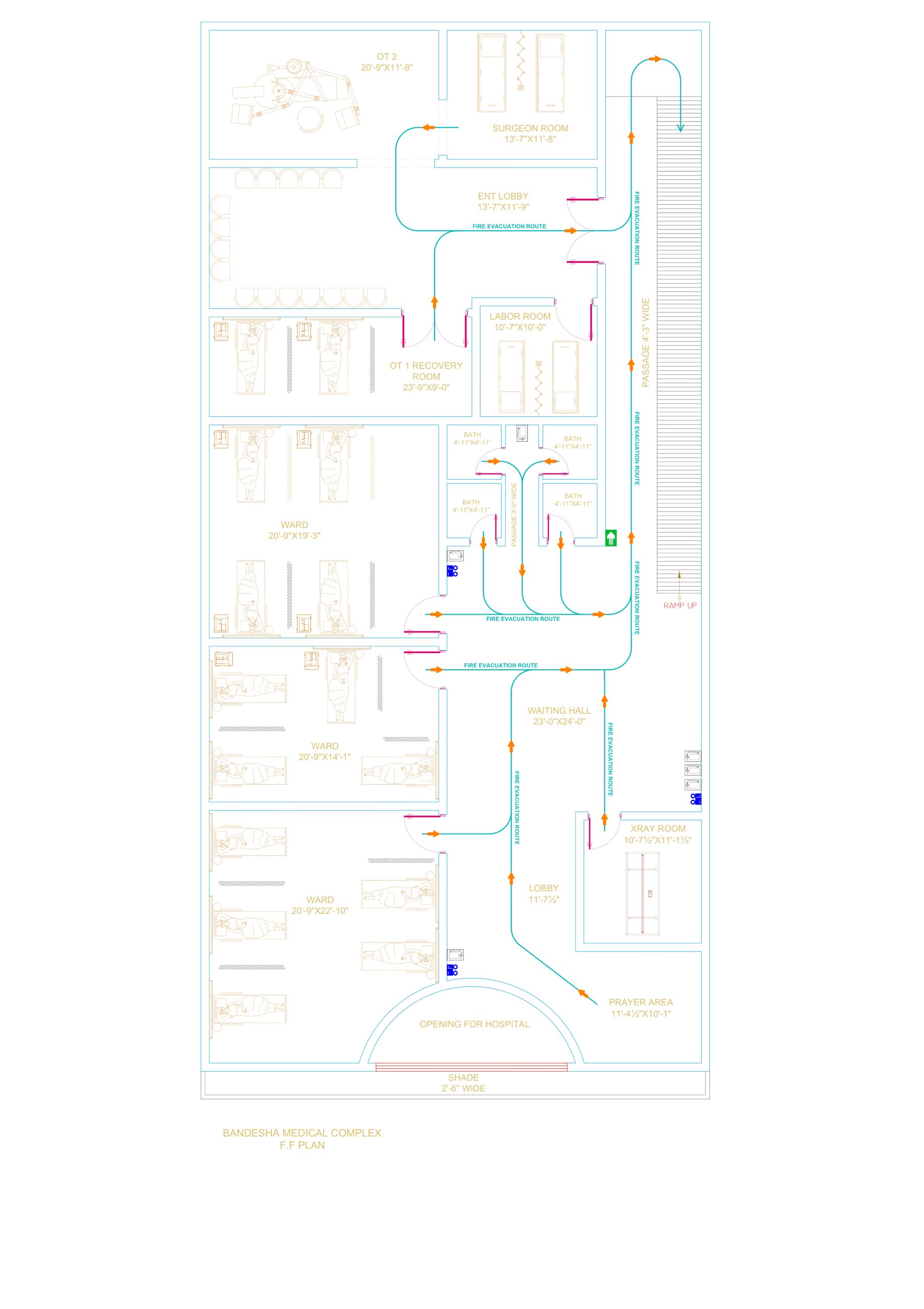

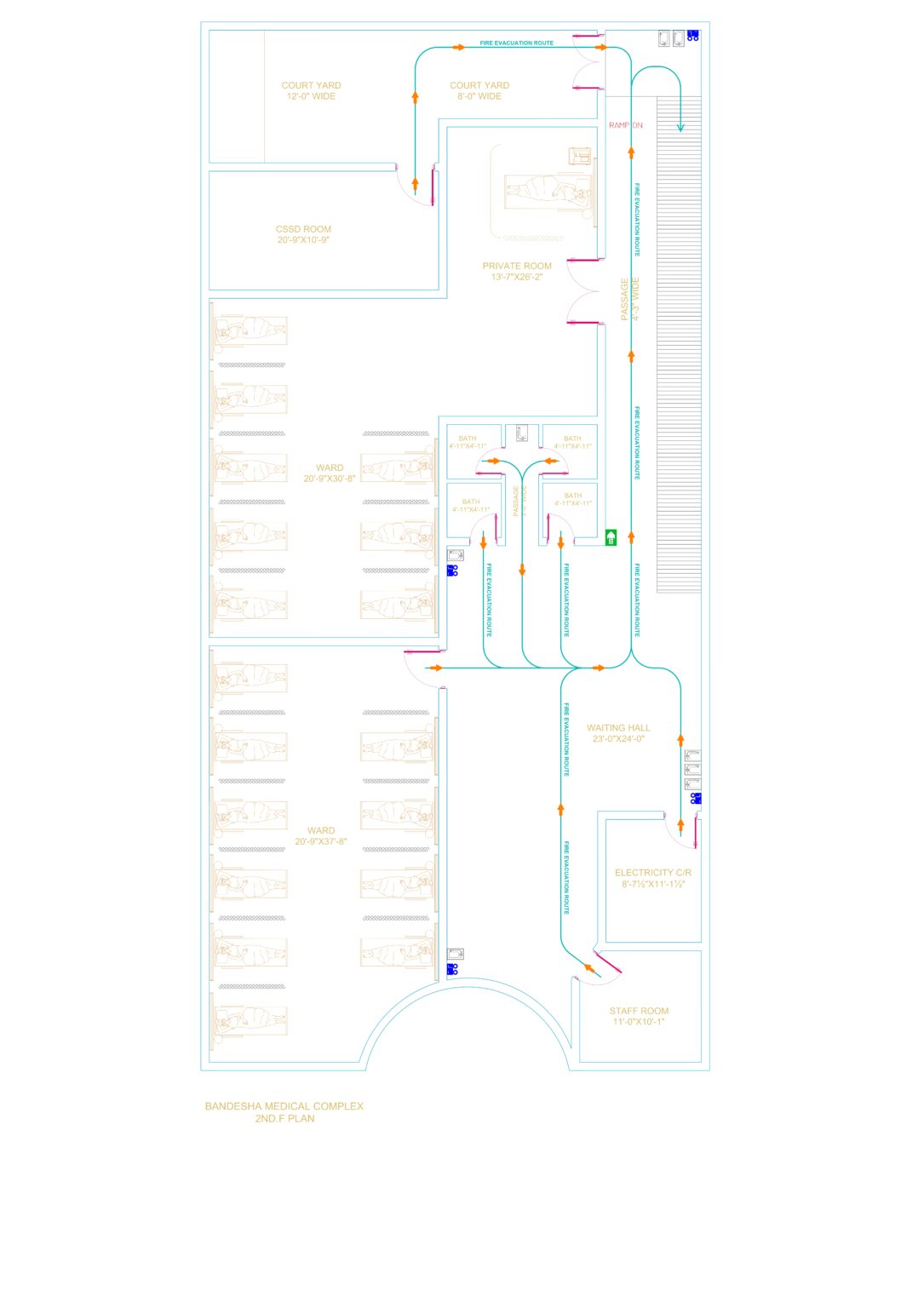

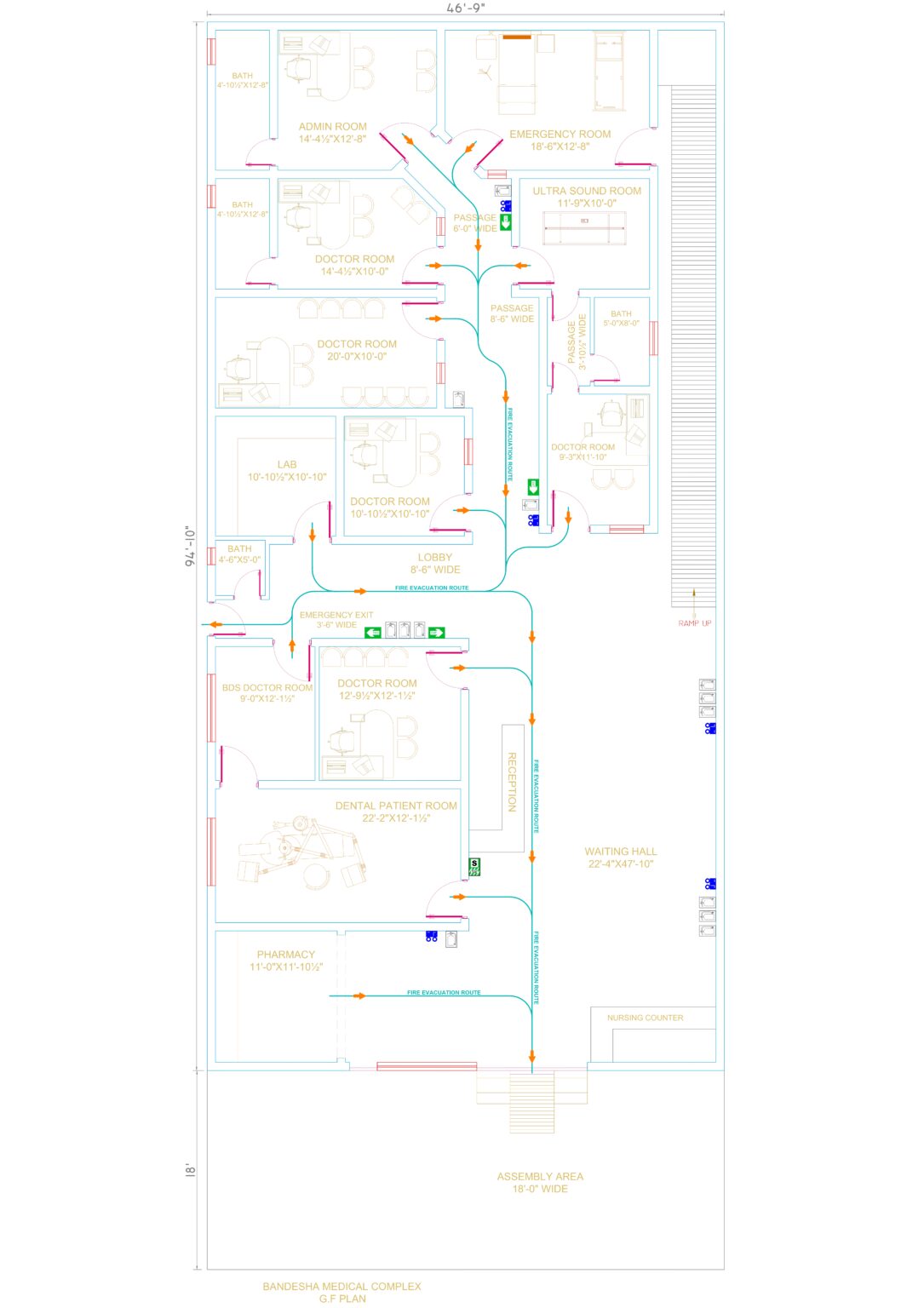

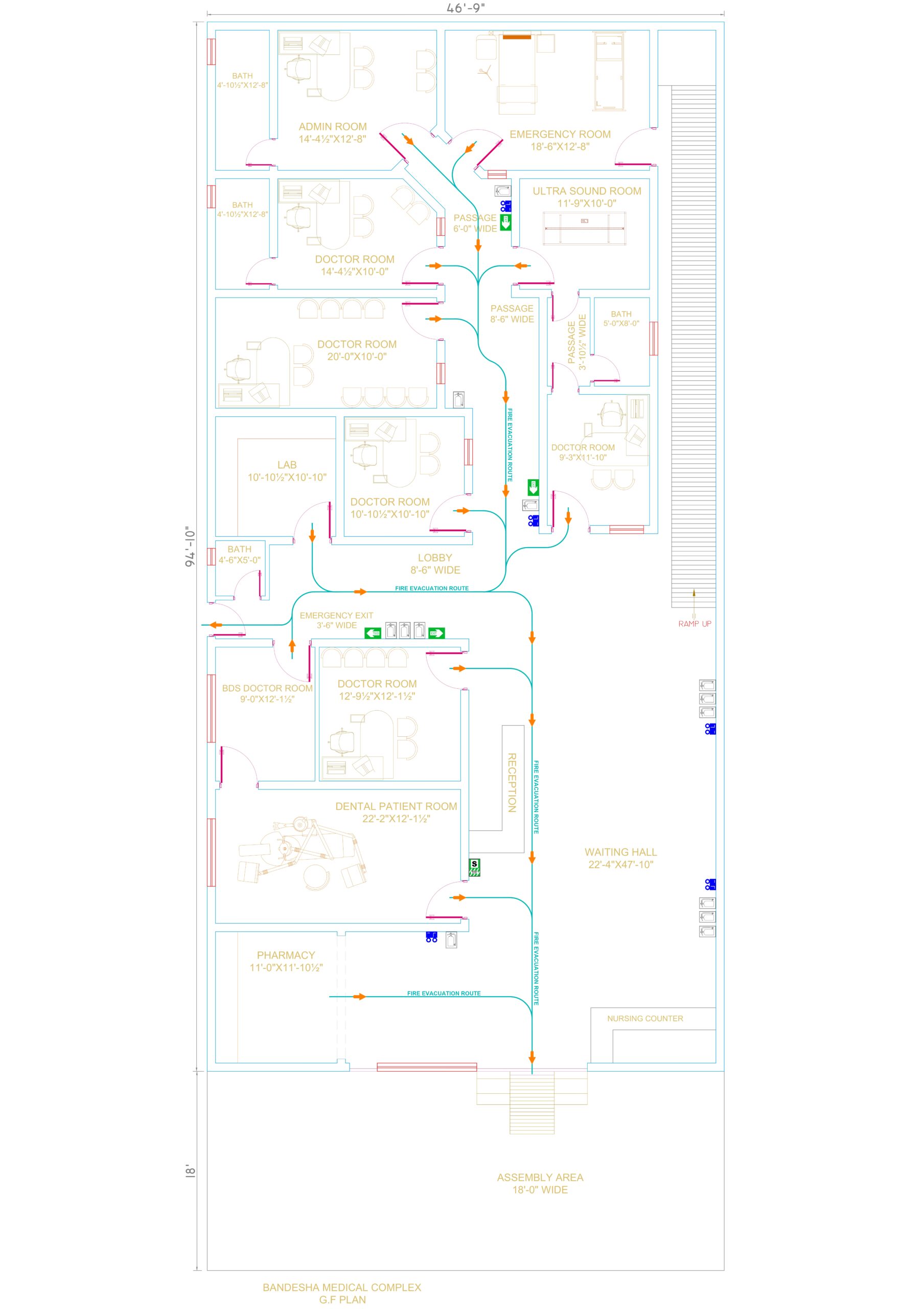

2D Floor Plan – Functional, Accessible, and Compliant
The floor plan is developed using hospital zoning principles, separating public, semi-public, and restricted access areas for both efficiency and hygiene.
Key Layout Features:
Main Reception & Waiting Hall: Centrally located with easy access to all departments
Outpatient Consultation Rooms: Multiple OPD rooms for general physicians and specialists
Pharmacy & Lab: Front-facing pharmacy and diagnostic lab attached to OPD block
Minor Procedure Room / ER: For outpatient procedures and first-aid care
Patient Lounge & Public Toilets: Clean, accessible, and ADA-compliant layout
Admin & Billing Section: Located near the entrance for smooth patient intake and records
Doctors’ Lounge / Staff Area: Separated from patient flow
Vertical Circulation: Lift + staircase designed for stretcher movement and future floors
Utility and Waste Management Area: Hidden from public zone for clean operations
3D Exterior Design – Bold, Modern Healthcare Identity
The 3D exterior reflects a contemporary healthcare aesthetic—clean, professional, and approachable—positioning the building as a beacon of trust and care in the area.
